Maya-3 CW telemetry 2021-10-15

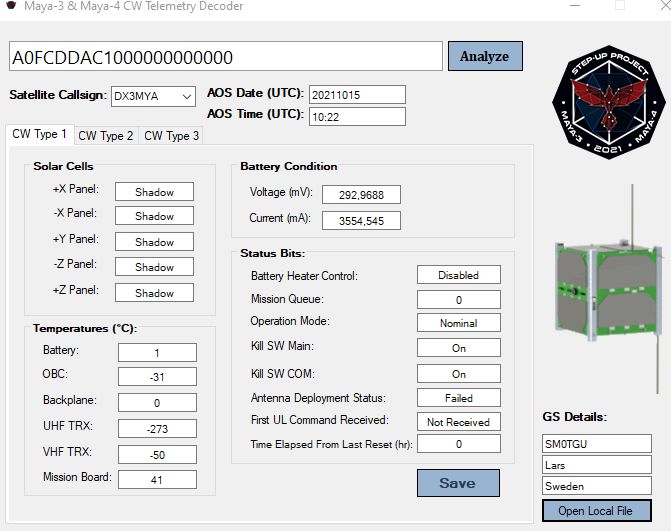

#maya3 CW telemetry at 437.375 MHz and decoded with CW Telemetry Decoder. Please join the tracking contest! Read more at:
https://twitter.com/STAMINA4Space/status/1448540683166388224

I have used the following hardware and software:

  • RX at aprox 437.375 MHz CW
  • 26 el UHF LFA X-Yagi (2* 13 el) from InnovAntennas.
  • AlfaSpid RAS az/el rotor
  • LNA Mini-70 from SHF Elektronik
  • LMR-400 coax
  • Airspy Mini
  • SDR-Console v3 with doppler correction of downlink and satellite tracking, rotor control
  • PstRotator for rotor control interface between SDR-Console and RAS controller
  • VB-Cable: virtual audio cable for piping audio from SDR Console to FlDigi. Set to 96 kHz and 16 bit.
  • FlDigi for CW decoding.
  • Maya CW Telemetry Decoder. Can be downloaded at:
    https://t.co/D2yw3AuLPZ?amp=1

Av SM0TGU

Webmaster and member of the AMSAT-SM steering group.
