HADES-R telemetry over Stockholm. 22 packets uploaded to #satnogs Equipment and software used:
- RX at 436.886 MHz USB
- 2 x 13 el LFA X-Yagi (InnovAntenna) switched between horizontal and vertical polarisation
- AlfaSpid RAS az/el rotor
- LNA Mini-70 from SHF Elektronik
- LMR-400 coax
- Airspy Mini SDR

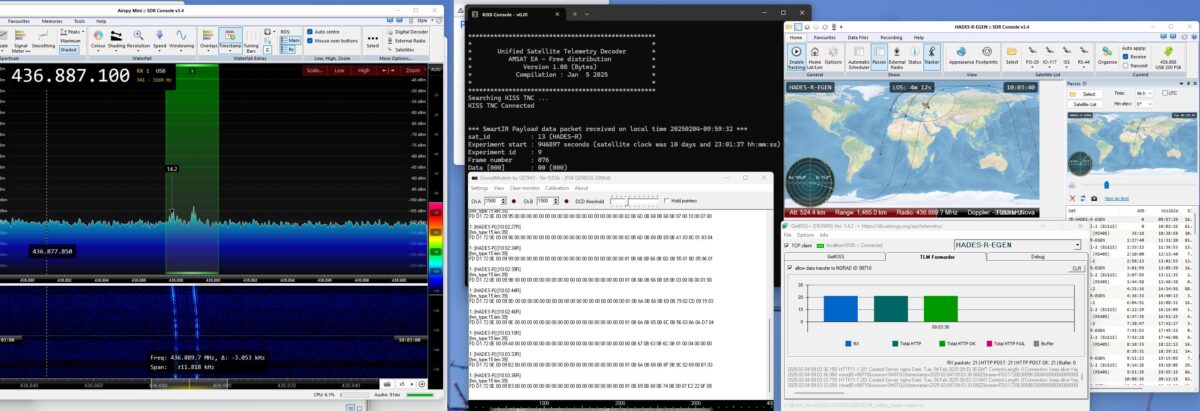

- SDR-Console v3 with doppler correction of downlink and satellite tracking, rotor control
- PstRotator for rotor control interface between SDR-Console and RAS controller
- VB-Cable: virtual audio cable for piping audio from SDR Console to Soundmodem. Set to 96 kHz and 16 bit.
- Genesis 200bd Soundmodem v0.02b ,download from:
https://www.amsat-ea.org/proyectos/ - AMSAT-EA KISS Console, also download from:
https://www.amsat-ea.org/proyectos/ - GetKISS+ v 1.4.2 from DK3WN for sending telemetry to SatNOGS dB
- Kepler from SatNOGS:
https://db.satnogs.org/satellite/98710#data
