LEDSAT telemetry 2021-08-23

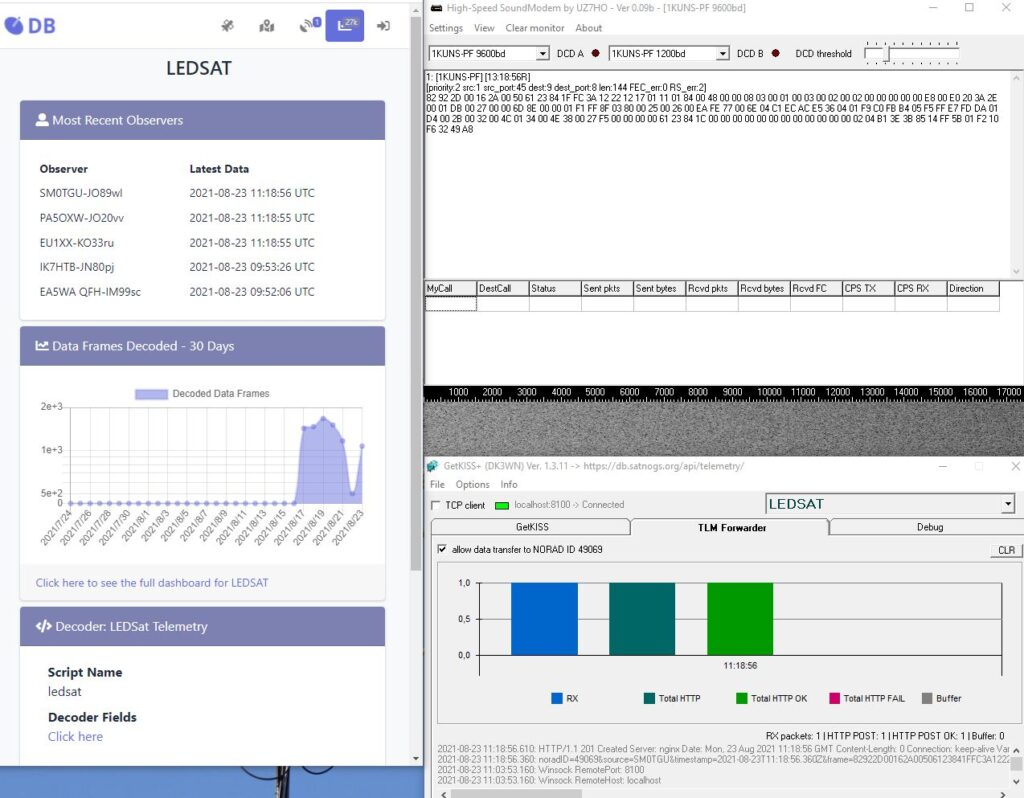

@S5Lab @ESA__Education LEDSAT telemetry over Sollentuna, Stockholm. Software and hardware used:

  • RX at aprox 435.190.5 MHz Wide-FM bandwidth 12 kHz
  • 2×13 el UHF LFA X-Yagi (InnovAntennas) in vertical polarisation (best RX…)
  • AlfaSpid RAS az/el rotor
  • LNA Mini-70 from SHF Elektronik
  • LMR-400 coax
  • Airspy Mini
  • SDR-Console v3 with doppler correction of downlink and satellite tracking, rotor control
  • PstRotator for rotor control interface between SDR-Console and RAS controller
  • VB-Cable: virtual audio cable for piping audio from SDR Console to Soundmodem. Set to 96 kHz and 16 bit.
  • HS-Soundmodem 1KUNS-PF v0.09b at mode 9600bd
  • GetKISS+ v 1.3.11 from DK3WN – data uploaded to SatNOGS.
  • Kepler from SatNOGS 49069

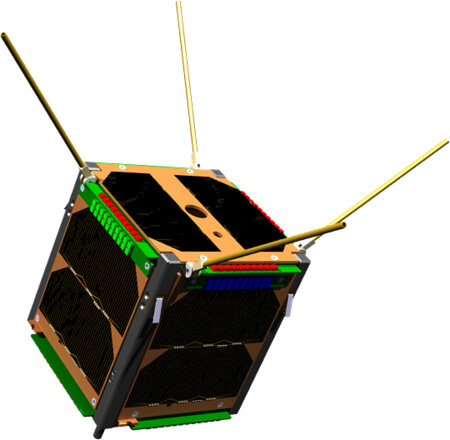

LEDSAT

Av SM0TGU

Webmaster and member of the AMSAT-SM steering group.
