Delfi-N3XT telemetry 2021-03-09

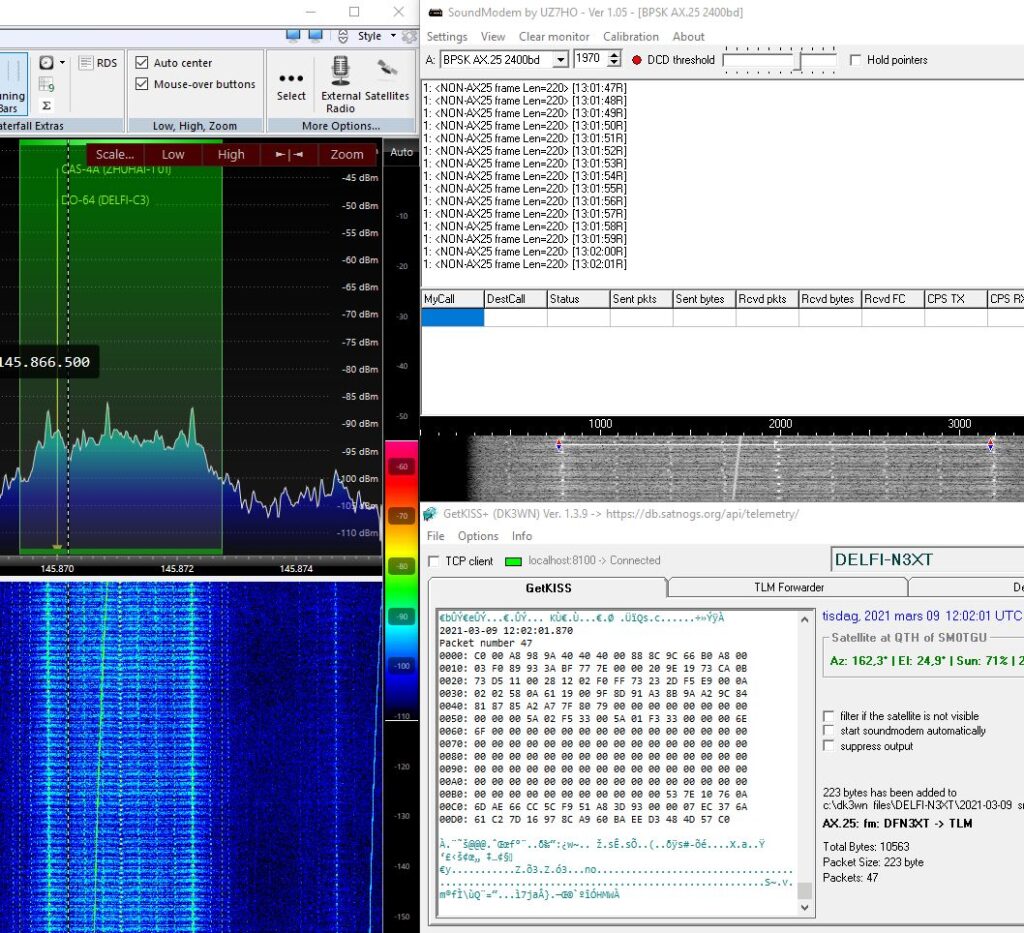

RX of 346 packets @DelfiSpace Delfi-N3XT satellite, uploaded to @satnogs Very strong and easy to decode. See software used in this post:

  • RX at aprox 145.868 MHz USB
  • 2 x 6 el VHF Yagi (Vårgårda) circular polarisation
  • AlfaSpid RAS az/el rotor
  • LNA Mini-2 from SHF Elektronik
  • LMR-400 coax
  • Airspy Mini
  • SDR-Console v3 with doppler correction of downlink and satellite tracking, rotor control
  • PstRotator for rotor control interface between SDR-Console and RAS controller
  • VB-Cable: virtual audio cable for piping audio from SDR Console to Soundmodem. Set to 96 kHz and 16 bit.
  • Soundmodem v1.05 at mode BPSK AX.25 2400bd.
  • GetKISS+ v 1.3.9 from DK3WN

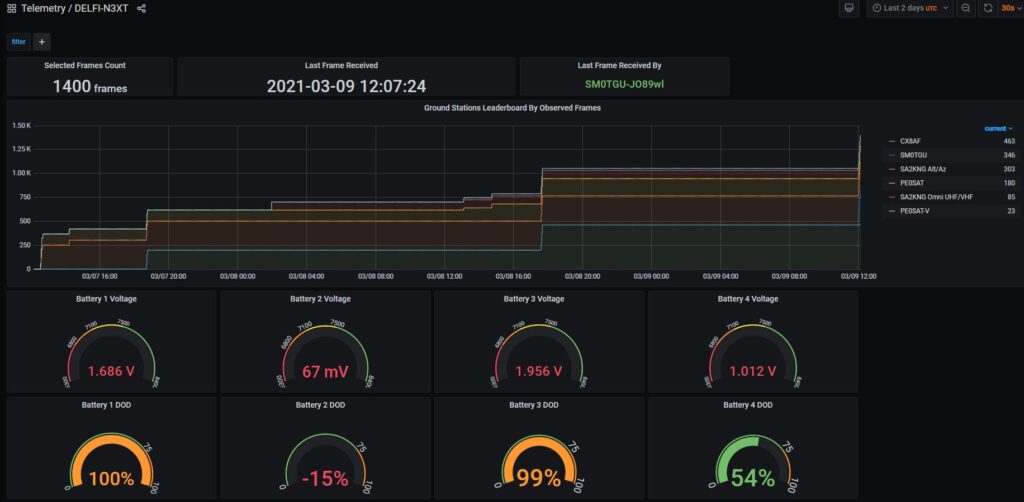

And data presented at SatNOGS DB

Av SM0TGU

Webmaster and member of the AMSAT-SM steering group.
