CAS-4A and CAS-4B Satellites from CAMSAT Launched today

Two CAMSATs armature radio payloads piggybacked on the optical remote sensing micro-satellites OVS-1A and OVS-1B have been launched at 11:00BJT
on June 15, 2017 at The Jiuquan Satellite Launch Center of China, using CZ-4B launch vehicle. The primary of this launch is a hard X-ray modulation
telescope satellite (HXMT).

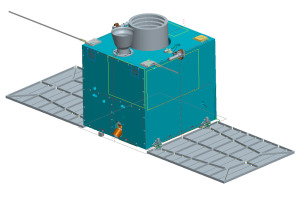

Satellite Name: CAS-4A/OVS-1A

Architecture: Micro-satellite
? Dimensions: 494Lx499Wx630H mm
? Mass: 55kg
? Stabilization: three-axis stabilization system with its +Y surface faci ng the earth
? Primary Payload: optical Camera with 1.98m resolution
? Orbit:
? Orbit type : Sun synchronization orbit
? Apogee : 524km
? Inclination : 43?
? Period : 95.1min



? Amateur Radio Payload:
? Call sign: BJ1SK
? VHF Antenna: one 1/4? monopole antenna with max.0dBi gain is located at +Z side
? UHF Antenna: one 1/4? monopole antenna with max.0dBi gain is located at -Z side
? CW Telemetry Beacon: &n bsp; 145.855MHz 17dBm
? AX.25 4.8k Baud GMSK Telemetry: 145.835MHz 20dBm
? U/V Linear Transponder Downlink: 145.870MHz 20dBm, 20kHz, Inverted
? U/V Linear Transponder Uplink: 435.220MHz





? Satellite Name: CAS-4B/OVS-1B
? Architecture: Micro-satellite
?Dimensions: 494Lx499Wx630H mm
?Mass: 55kg
? Stabilization: three-axis stabilization system with its +Y surface facing the earth
? Primary Payload: optical Ca mera with 1.98m resolution
?Orbit:
? Orbit type : Sun synchronization orbit
? Apogee : 524km
? Inclination : 43?
? Period : 95.1min



?Amateur Radio Payload:
? Call sign: BJ1SL
? VHF Antenna: one 1/4? monopole antenna with max.0dBi gain is located at +Z side
? UHF Antenna: one 1/4? monopole antenna with max.0dBi gain is located at -Z side
? CW Telemetry Beacon: 145.910MHz&n bsp; 17dBm
? AX.25 4.8k Baud GMSK Telemetry: 145.890MHz 20dBm
?U/V Linear Transponder Downlink: 145.925MHz 20dBm, 20kHz, Inverted
?U/V Linear Transponder Uplink: 435.280MHz



73!
Alan Kung, BA1DU
